Crash Barrier & Modular Box
CRASH BARIER / GUARD RAIL
EMINENT STEEL is a leading supplier and exporter of Metal Crash barriers which is basically Road safety system which prevents vehicles from colliding with obstacles such as boulders, walls, buildings and also prevents vehicles entering into large storm drains, steep slopes or deep water.
Crash barriers, also known as guardrails or safety barriers, are essential roadside safety features designed to prevent vehicles from leaving the road, mitigate the severity of impacts, and protect against roadside hazards. They are strategically placed at accident-prone locations like highways, bridges, and hilly terrains to absorb or redirect the energy of a collision, minimizing damage and injury
Specifications
- Cold roll formed in thickness 3mm/2.8mm/2.6mm
- Raw materials conforming to 5986/2062/10748 or equivalent of grade.
- Fe 250/ Fe 350/ Fe 410/ Fe 510
- Hot deep galvanized to 550gsm/sq.m
- Overall Length 4318 mm/ 3318mm/ as per customized drawing.
- Effective Length: 4000mm/3000mm

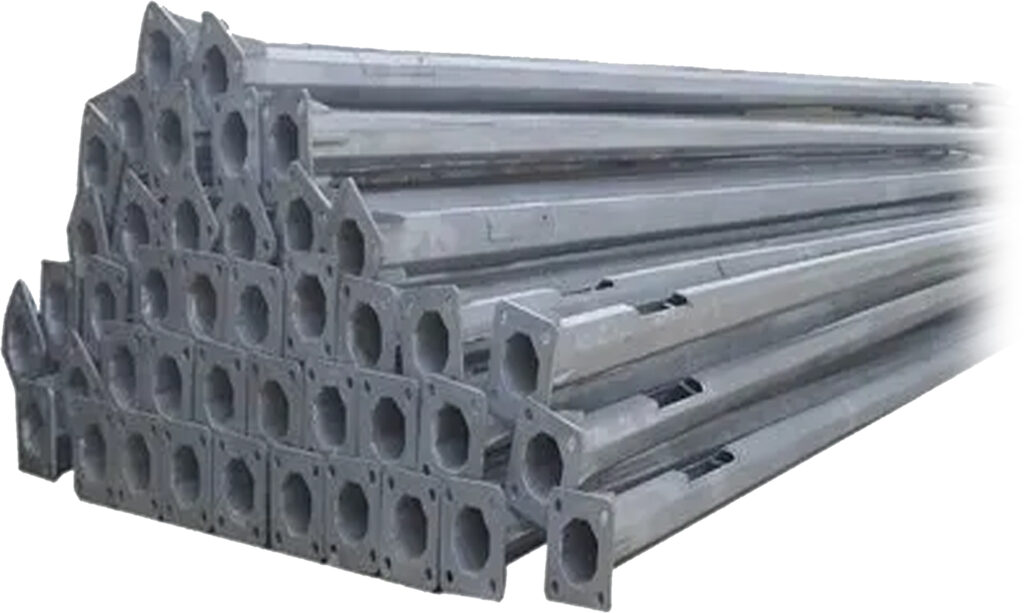

GALVANISED ELECTRIC POLE
EMINENT STEEL is one of the leading manufacturer and supplier of electric poles, high mast poles and various other types. Electric poles are large rigid structure which are used in the lightening system alongside the streets, stadiums, highways, stock yards and parking areas. These are made from high quality material for which makes them able to withstand in severe atmospheric conditions such as heavy rainfall, winds etc., Electric poles provided by our company are available in different heights in between the range of 4000 mm to 14000 mm as per the area of their application. They are highly durable and corrosion resistant which ensures long service life and requires negligible maintenance.
Key Specifications and Features:
- Material:Mild steel, hot-dip galvanized (for corrosion resistance).
- Shape:Commonly octagonal or tubular.
- Height:Ranges from 6 to 12 meters, depending on the application (residential streets, highways, etc.).
- Pole Type:Can be single-arm or dual-arm.
- Thickness:Typically 3mm or as per customer requirements.
- Coating:Hot-dip galvanization is standard, and some poles may have additional powder coating.

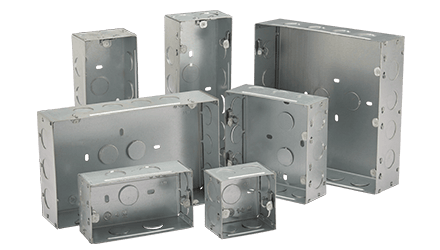

ELECTRIC MODULAR BOX
| Module | Size |
|---|---|
| 2 | 3 x 3 |
| 3 | 4 x 3 |
| 4 | 5 x 3 |
| 6 | 8 x 3 |
| 8 | 9 x 3 |
| 8 | 5 x 5 |
EMINENT STEEL is one of the leading manufacturer and supplier of electric Concealed Box or metal modular box of different shape and size, a Concealed Box / Surface Box is a modular metal box that can be concealed within the wall or surface it is mounted on. It is perfect for hiding away unsightly cables and wires and can be used to store or conceal other items as needed. This makes it an ideal solution for home theatres, office spaces, or any other area where cables and wires need to be hidden.
We are recognized as an affluent entity, engaged in offering a wide assortment of Powder Coated Junction Box. Manufactured using quality approved raw material and advanced methodology, offered box is also stringently tested by our quality inspectors to ensure its flawless finish. We offer this Powder Coated Junction Box in several sizes, designs and other specifications at most affordable price to our clients
